Dates Syrup Production Line

Date Syrup Production Line

The date syrup production line is an integrated industrial solution designed to produce high-quality syrup with a production capacity of up to 3000 kg/hour.
The process begins with washing and sorting the dates, followed by pre-cooking to soften them, then pitting and kneading to extract the pulp. After that, the juice is extracted and filtered, then concentrated using a vacuum evaporator.

The final product is stored in dedicated tanks, then automatically filled into bottles and tightly sealed using modern filling and capping machines. The line also includes a complete water treatment system and a CIP (Clean-in-Place) cleaning system to ensure the highest standards of quality and food safety.

This line is designed to provide stable production, purity, and high nutritional value, making it an ideal choice for factories and companies seeking to expand in the date syrup industry.

Contact Us

Stages of the Date Syrup Production Line and the Equipment Used

DATES WASHING MACHINE

Used for fresh fruits, dried fruits washing, ensure the quality of raw materials. By the action of the high pressure water and strong bubble, the vegetables

and fruits will be cleaned by exploding and tumbling bubbles, and the same time, stainless steel belt convey vegetables move ahead, the cleaned

vegetables and fruits will be washed again by spraying cleaner above and

then delivery to next process.

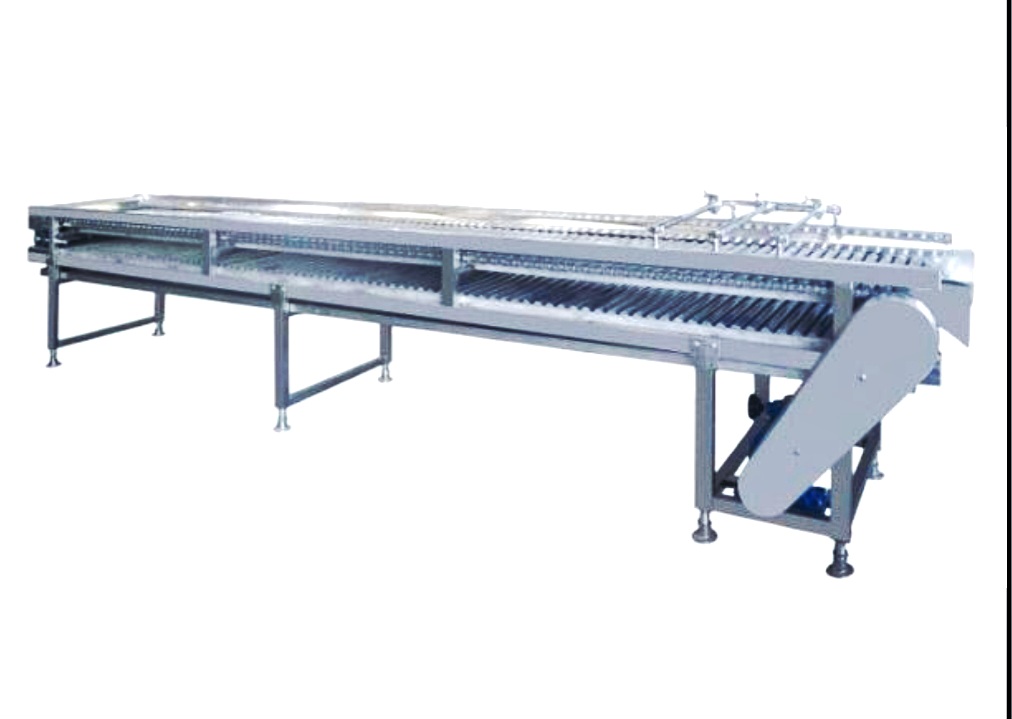

Dates Sorting Table

Used for fresh fruits, dried fruits washing, ensure the quality of raw materials. By the action of the high pressure water and strong bubble, the vegetables

and fruits will be cleaned by exploding and tumbling bubbles, and the same time, stainless steel belt convey vegetables move ahead, the cleaned

vegetables and fruits will be washed again by spraying cleaner above and

then delivery to next process.

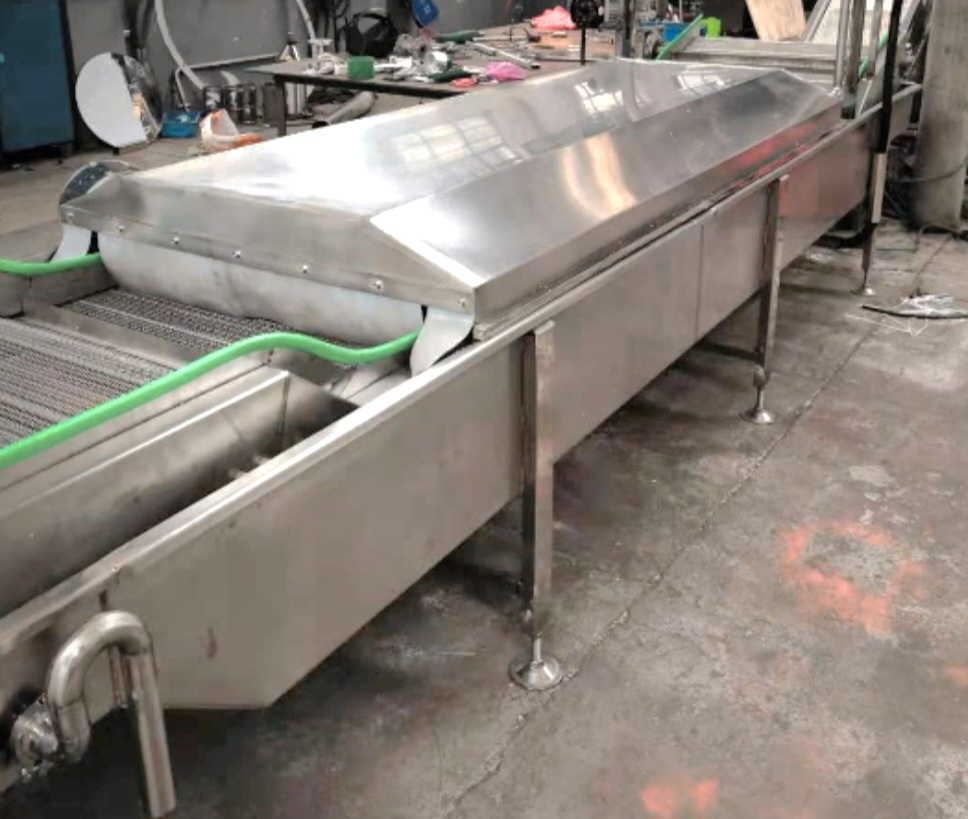

Automatic Pre-Cooking Machine

Used for cooking and softening the raw material, to be ready for next process. Tunnel preheating, stainless steel mesh chain conveying form, stainless steel frame structure. All stainless steel semi closed structure. Matching stainless steel water tank, stainless steel circulating water filter, steam filter, steam outlet, PT100 temperature sensor, speed regulating motor, etc. Equipped with self-cleaning high-pressure spray device.

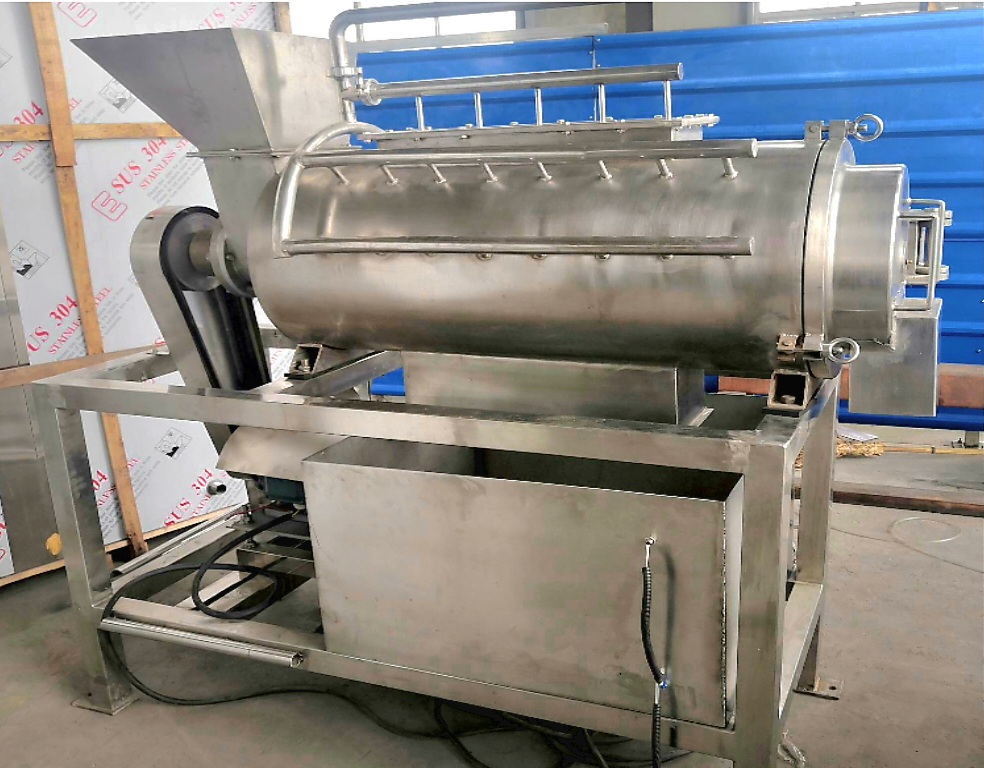

Pulping & Pitting Machine

Used for dates pulping, seed and skin removing, equipped with steam preheating jacket and steam filter

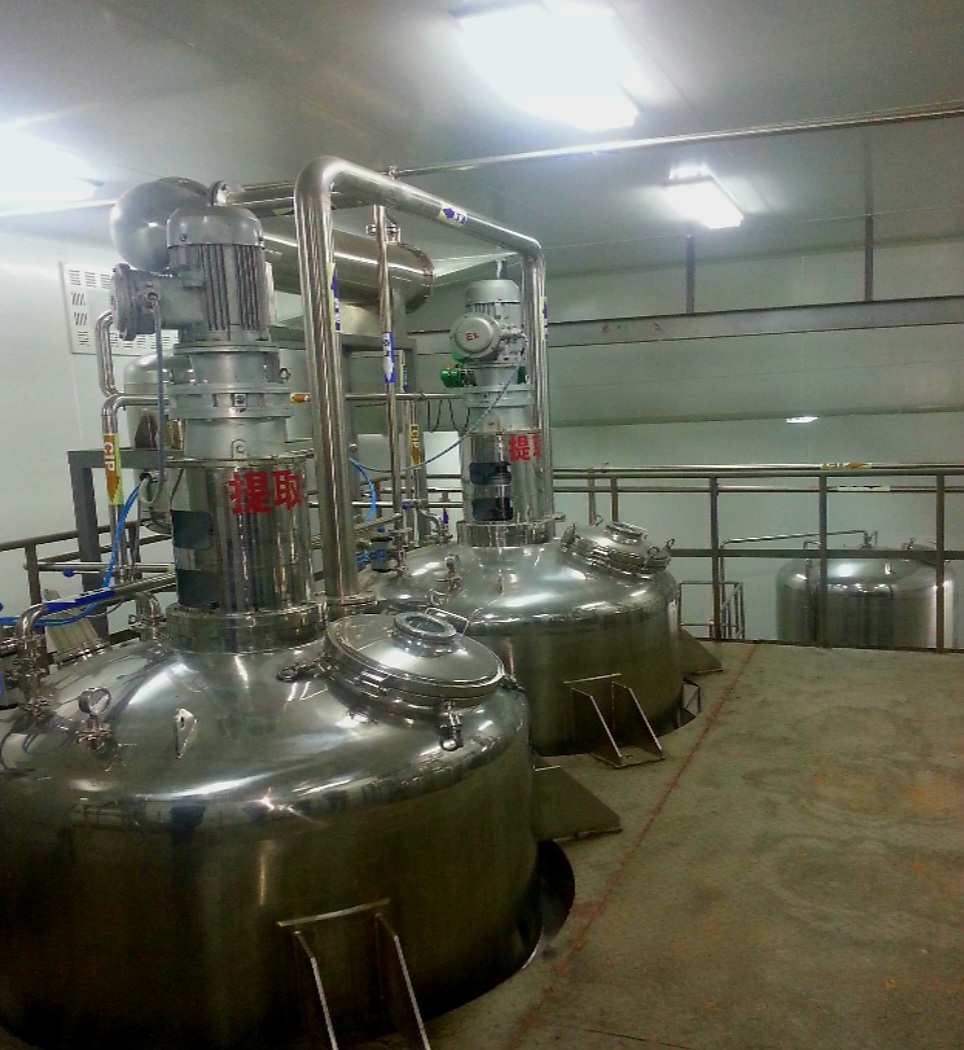

Extraction Tanks

Used for date juice extraction.

Extraction tank: 4000L

Motor: 2.75kw

Filtration: 120mesh

Heating area of extraction tank: 5.95m2

Cooling area of condenser:7.35m2

Cooler area: 1.55m2

Layer working pressure: 0.3Mpa

Extraction water temperature: 60~70C

Temperature control: PT100 temperature sensor, inset heater

Hot water circulation pump power: 2.5kw

Material: SUS304

Surface treatment for equipment: inside mirror polishing, outside matt wire drawing processing

Dimensions: 3000*2200*3300mm

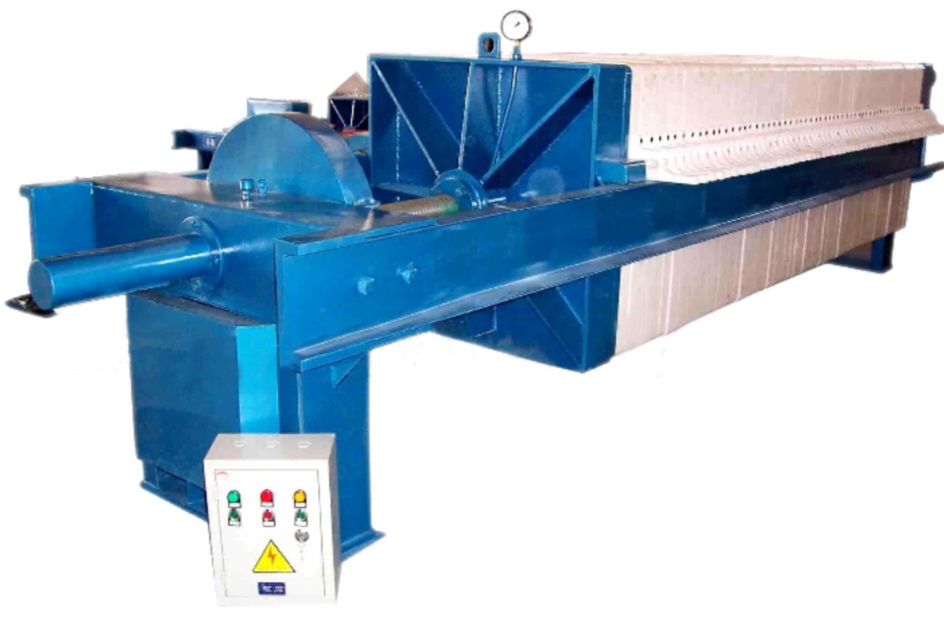

Plate and Frame Filter Press

The juice will be pumped into every filtration chamber, the filtrate come out of the filter plates through the pressure, the residue will stay between the plates.

  1. Filtration area: 36M2
  2. Filtration chamber volume: 520L
  3. Filtration plate: 49pcs
  4. Pressure: 0.6Mpa
  5. Motor power: 2.2kw
  6. Weight: 2500kg

7. Dimensions: 3800*1320*1340mm

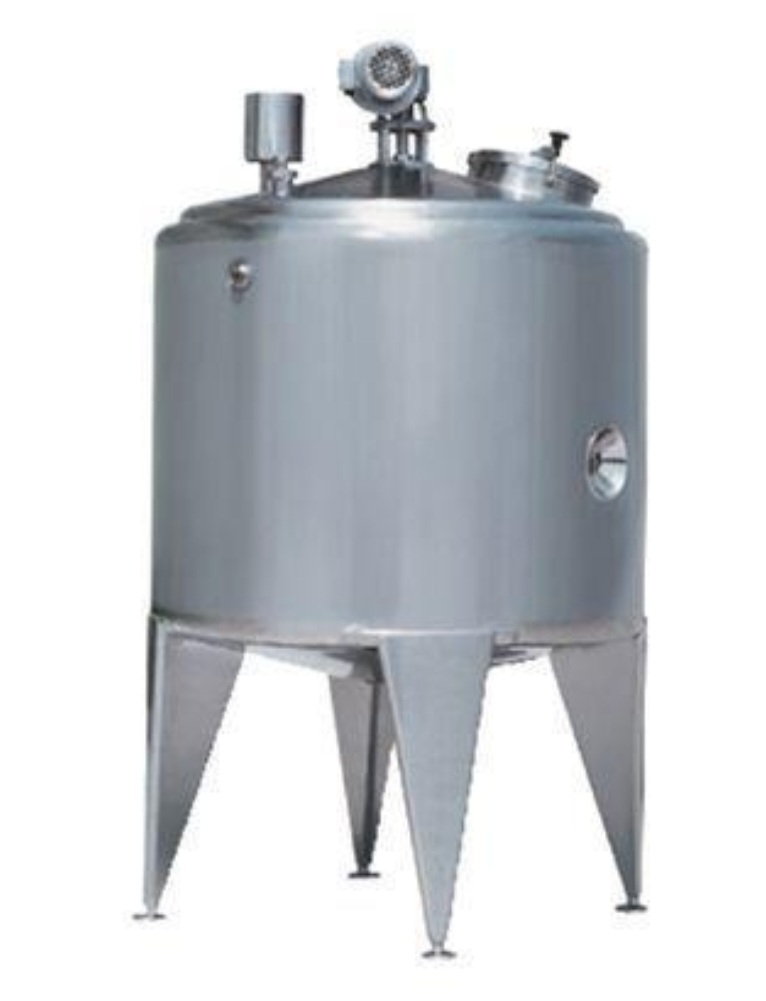

Buffer Tank

Mainly used for milk, juice temporary storage.

  1. Volume: 3000L.
  2. 304 # stainless steel material.
  3. 300 mesh liner polished, appearance with 2B matt.
  4. Equipped with self-feeding health pumps.
  5. Cleaning: top of the device is equipped with a 360-degree rotating CIP cleaning head.
  6. Digital thermometers, temperature display range of 0~100C.
  7. The device three layers vertical structure, the lower part equipped with standard quick-connect valve.

8. Stir cycle milk pump: 2.75kw

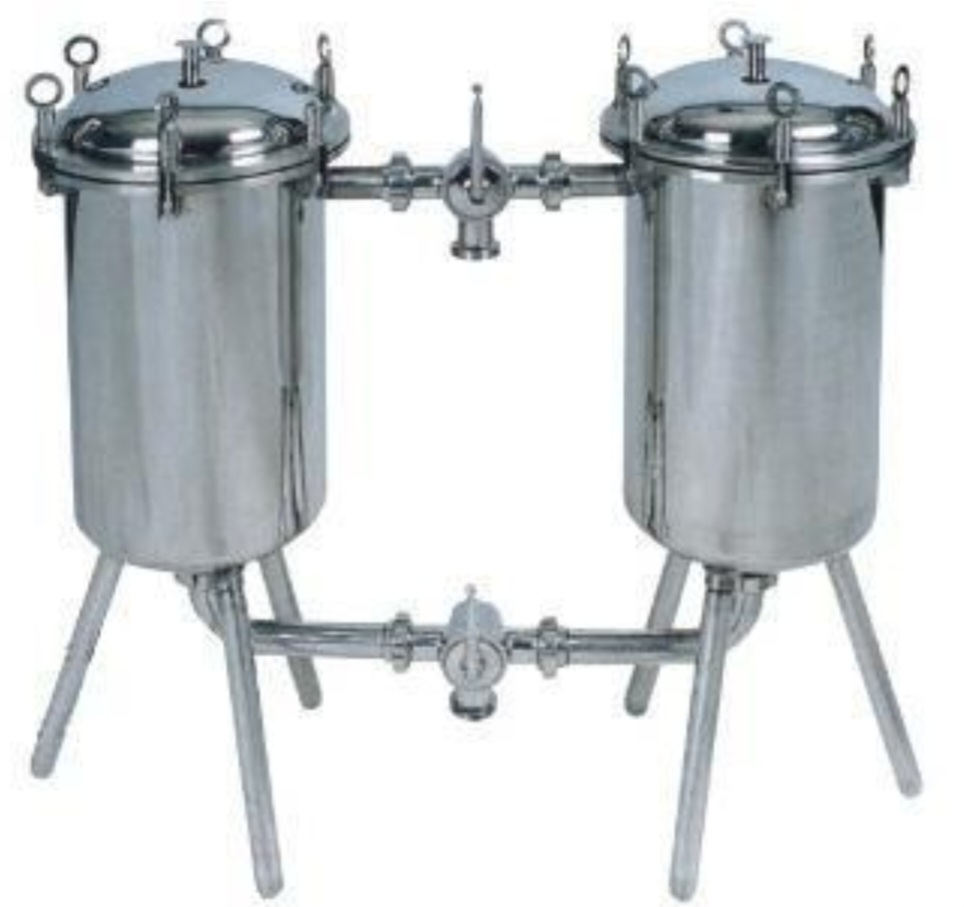

Double Filter

This filter is for removing milk, sugar, beverages and other liquids in a variety of invisible purification of solid impurities. Two filters used in turn to stop from time to replace filter cloth, suitable for long-term continuous production.

  1. Filter area: 0.3M2
  2. Filter temperature: ≤ 100C
  3. Using pressure: 0.2Mpa
  4. Inlet pipe diameter: 40mm
  5. Outlet pipe diameter: 40mm

6. Dimensions: 1200*350*1200mm

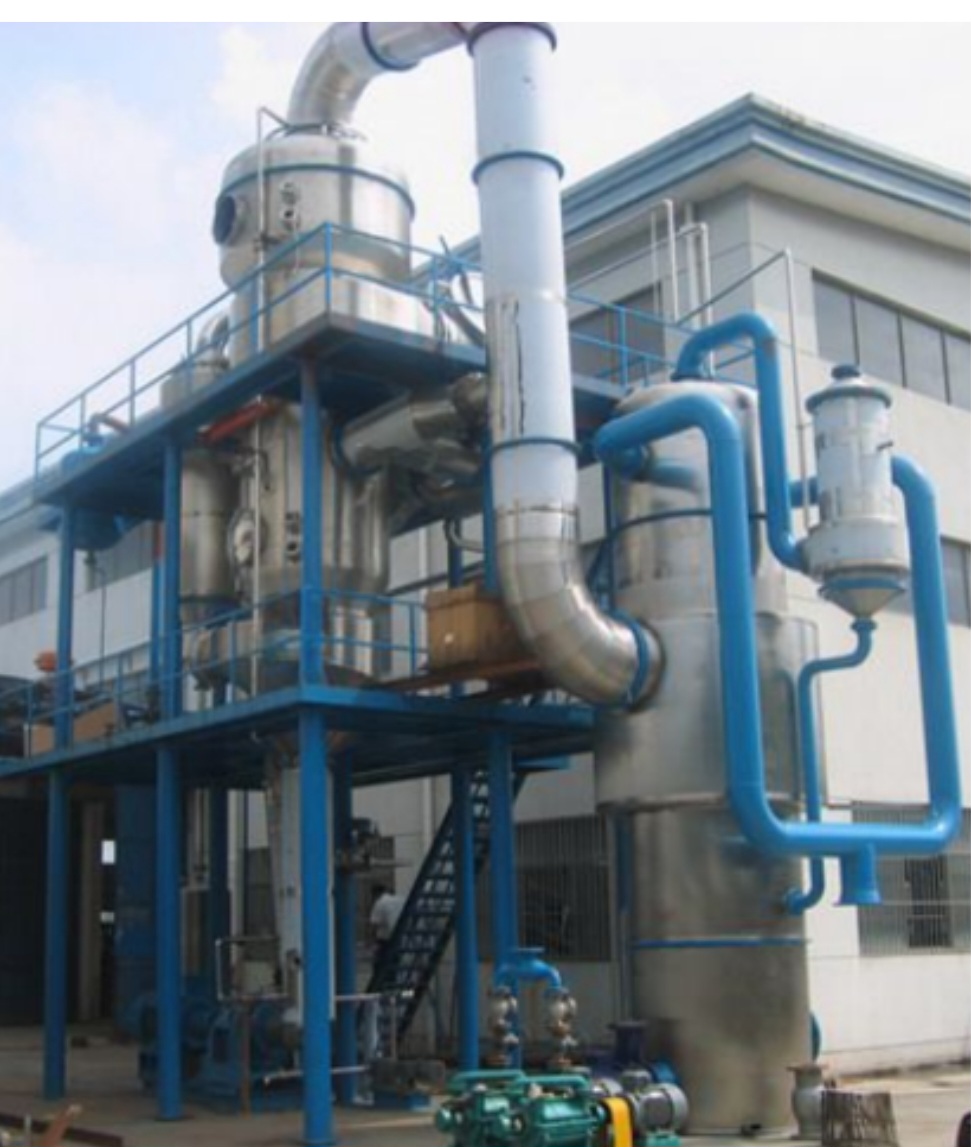

Double Effect Vacuum Evaporator

This machine is suitable for plants, pharmaceutical, food, chemical and other industries vacuum evaporation and concentration.

  1. Rating evaporating capacity: 3000kg/h
  2. Power: 45kw
  3. Dimensions: 6000*5500*8000mm
  4. Material touched parts made of stainless steel SUS 304
  5. Be applicable for heat-sensitive high-viscous material such as tomato paste and so on. Low-temperature continuous concentration under vacuum.
  6. The mainframe is composed of heater, evaporating chamber, hydraulic sprayer, circular out-feed pump and operation platform.
  7. Out-circular and double effect evaporating structure
  8. Vacuum degree: the first effect 80KPa, the second 91KPa
  9. Evaporating temperature: 1st effect 62C and the 2nd 45C
  10. Heating area: 1st effect 135M2 and the 2nd 135M2
  11. Heating temperature: 1st effect 107C and the 2nd 65C

12. Cool water consumption: 100 tons per hour (inputting temperature 20C)

Automatic Filling Machine

The product is suitable for CIP cleaning of the material pipes and containers in dairy products factories, as well as cleaning of the material pipes and equipment in brewery factories, beverage factories and general foods factories.

  1. Storage trough: 0.5% nitric acid liquid, 2% caustic alkali liquid
  2. Loading coefficient: 80%
  3. Container type: normal pressure container
  4. Number of cleaning procedures: 2
  5. Each cleaning period: 120 minutes
  6. Cleaning liquids supplying sequence: clear water – alkali liquid – clear water – acid liquid – clear water
  7. Centrifugal pump input and output screw thread: T55×3(Dg40)

8. Material: Stainless Steel SUS304

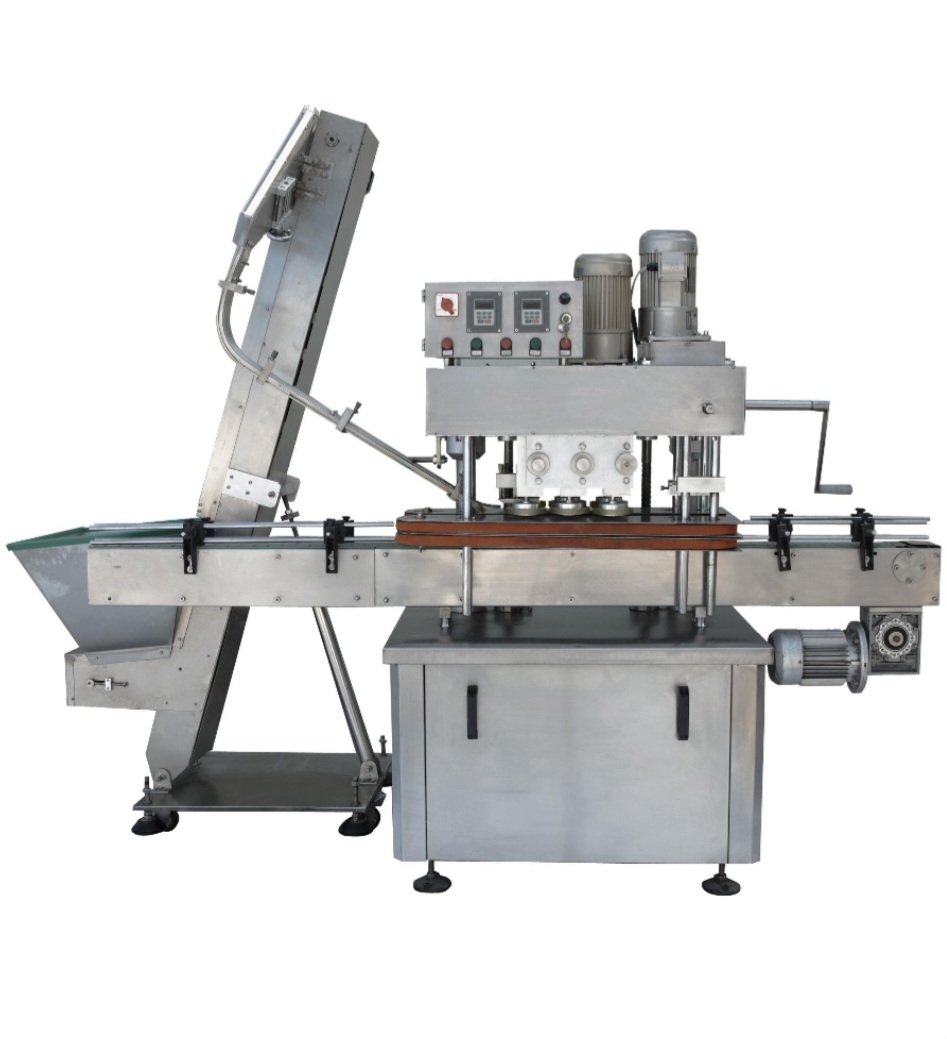

Automatic Capping Machine

This machine is ideal for sealing caps on glass containers of various shapes and sizes, including sauce bottles, jam jars, honey, peanut butter, pickles, and many other products. It features a mechanical capping system with frequency control technology and pneumatic pressure.
Capping speed: 3000 bottles/hour
Cap diameter: 28–100 mm
Bottle height: 50–350 mm
Bottle diameter: 38–160 mm
Air consumption: 1 m³/hour
Air pressure: 0.6–0.8 MPa
Power: 0.5 kW
Voltage: 220/380 V
Weight: 300 kg

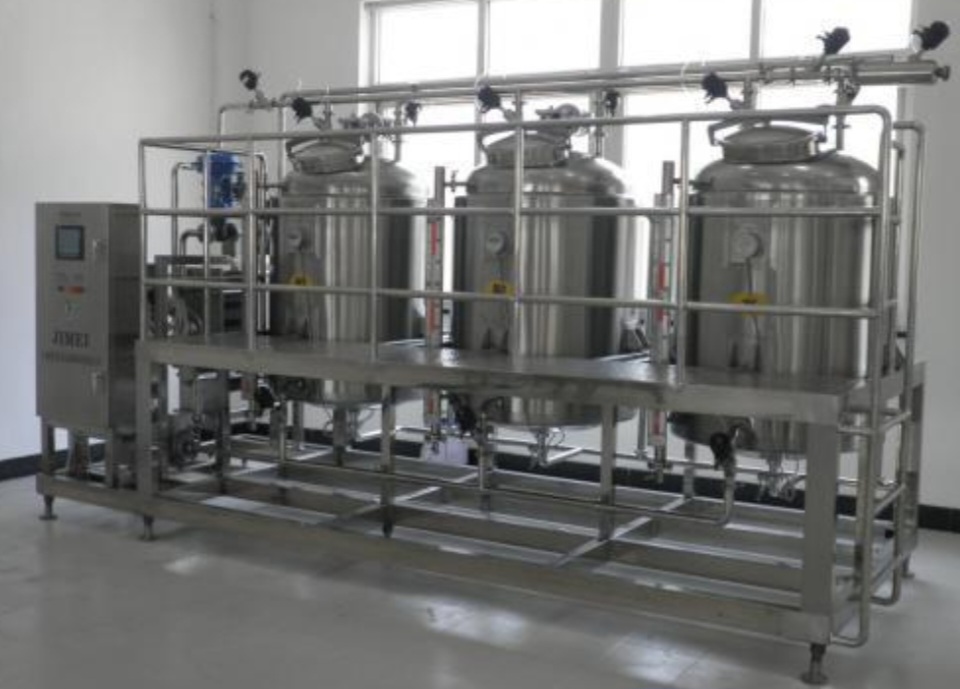

CIP Cleaning System

The product is suitable for CIP cleaning of the material pipes and containers in dairy products factories, as well as cleaning of the material pipes and equipment in brewery factories, beverage factories and general foods factories.

  1. Storage trough: 0.5% nitric acid liquid, 2% caustic alkali liquid
  2. Loading coefficient: 80%
  3. Container type: normal pressure container
  4. Number of cleaning procedures: 2
  5. Each cleaning period: 120 minutes
  6. Cleaning liquids supplying sequence: clear water – alkali liquid – clear water – acid liquid – clear water
  7. Centrifugal pump input and output screw thread: T55×3(Dg40)

8. Material: Stainless Steel SUS304

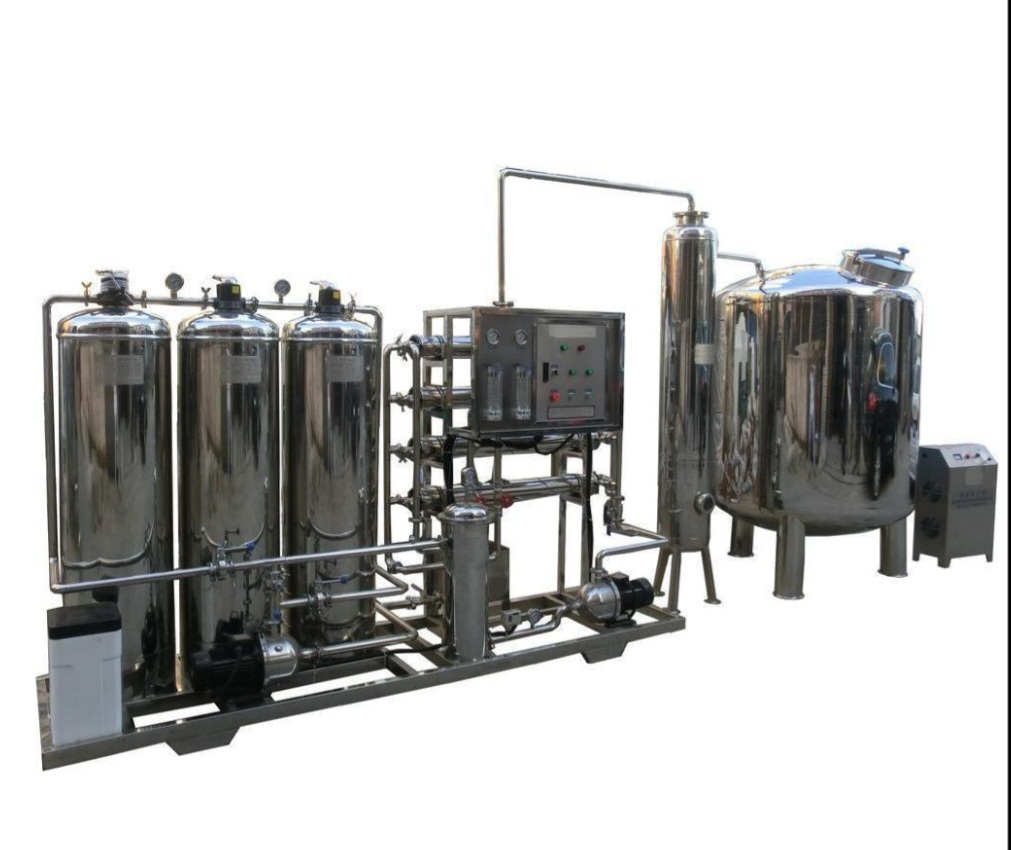

Water Treatment System

Widely used in foods and beverage industry, milk, juice industrial. The raw water is underground water /tap water, first goes by pre-treatment, then by RO treatment. Through those treatments, can remove dissolving salt 99% and harmful materials, like particle, colloid, organic impurities, heavy metal ions, bacteria, viruses and heat source, etc. The system salt rejection rate gets 96~98%, outlet water conductivity gets ≤ 10μs/M2.

  1. Capacity: 5000L/H
  2. Voltage: 220/380V
  3. Rated power: 9.5kw
  4. Water recovery rate: 60~75%
  5. Salt rejection rate: 96~98%

Main advantages:

  1. Can produce pure water continuously and highly automatic.
  2. No need chemical to regeneration, easy operation.

3. Low operation cost and long-life span.

✨ Final Result:
Production of high-quality date syrup, pure, rich in nutritional value, with a production capacity of up to 3000 kg per hour.
